The current page：Home > Products > Welding automation > Cladding equipment
Products

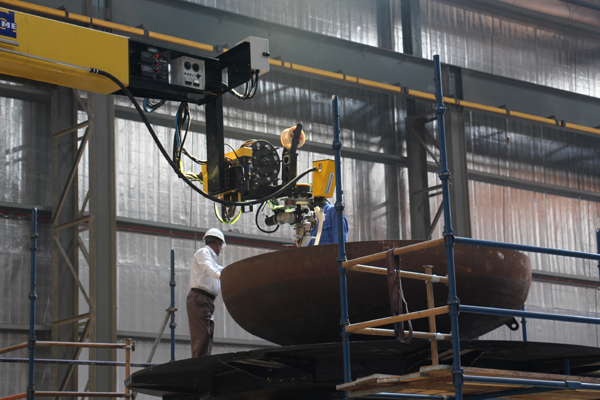

Strip cladding welding head

Feature code：
  • High deposition efficiency.
  • Good anti-stripping performance.
  • Low dilution rate.
  • Change welding beads and speech automaticlly.
  • Automatic anti-floating and boom tracking technology.
  • Spiral welding and step cladding function.
  • Electroslag cladding or submerged arc cladding function.
  • Friendly human-computer interface.
  • Whole digital centralized control system.

Selection principle of strip cladding welding equipment

  • Pipe cladding: TZH heavy duty manipulator + TR3 anti-floating rotator + strip cladding welding head + welding power source.
  • Dish head cladding: TZH heavy duty manipulator+TB1 postioner + strip cladding welding head + welding power source.
  • Tube-plate cladding: TZH heavy duty manipulator + TB6 horizontal rotating table + strip cladding welding head + welding power source.
  • Electro-slag cladding: It is recommended to select the magnetic control device.


Model

TIME: TFD 30-ESK-75 or

Soudokay: SK 30-ESK-75

TIME: TFD 60-ESK-75 or

Soudokay: SK 60-ESK-75

TIME: TFD 125-ESK-300 or

Soudokay: SK 125-ESK-300

Strip width (mm)

30

30、60

30、60、90、120

Minimum Dia.(mm)

Longitudinal：Φ380

Circumferential：Φ450

Longitudinal：Φ450

Circumferential：Φ650

Longitudinal：Φ650

Circumferential：Φ800

Welding current (A)

SAW：380~500

ESW：450~650

SAW：650~950

ESW：850~1250

SAW：650~950

ESW：850~1250

Arc voltage (V)

SAW：27~32,    ESW：22~25

Cladding linear speed (mm/min)

SAW：100~120,     ESW：110~130

Wire feeder

TFD (TIME), NA-3SF (Lincoln), A6(Esab)
